The numerical readout displays the current temperature of the interior of the furnace.
-
The Mode button changes the furnace from "READ" to "SET" mode. In SET mode, the readout displays the temperature the furnace is set at.
-
After five seconds, the furnace automatically reverts back to "READ" mode.
-
When the mode=SET, the Increase and Decrease buttons raise and lower the temperature the furnace is set at.
-
-
-
In MATE215, you should not have to alter the set points.
-
Press Mode to put the furnace in "SET" mode.
-
Press the increase/decrease buttons until the readout displays the desired temperature.
-
After five seconds, the furnace will revert to "READ" mode. The display should slowly increase or decrease to your set temperature.
-
-
-

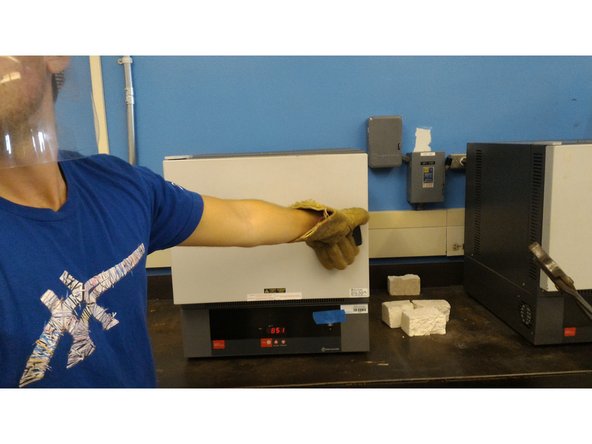

This is a two person operation. In this guide, Operator A is the door handler, and Operator B is the workpiece handler.
-

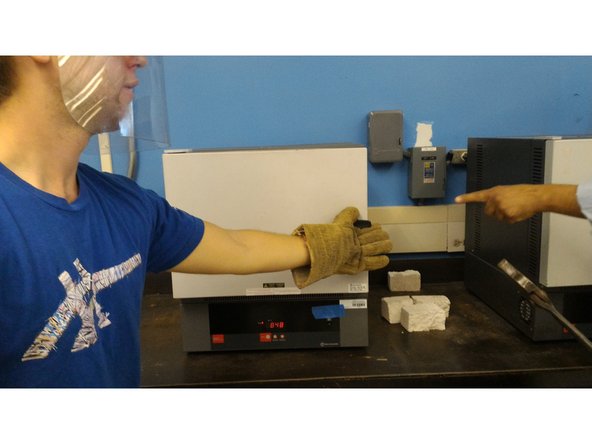

Make sure operators are wearing proper safety attire as described in the section on safety.
-

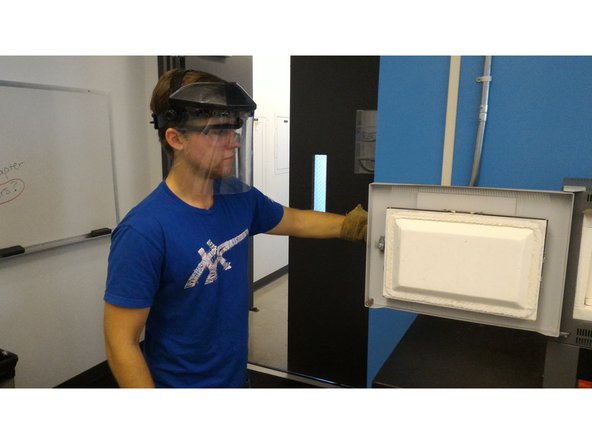

Operator A : While wearing the proper safety gear, turn the handle counter-clockwise to the unlocked position and slowly open the door.
-
Do not let go of the door handle.
-
-
-
This is a two person operation. In this guide, Operator A is the door handler, and Operator B is the workpiece handler.
-

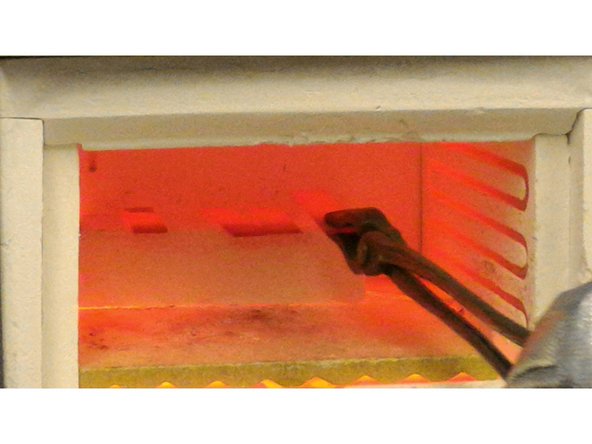

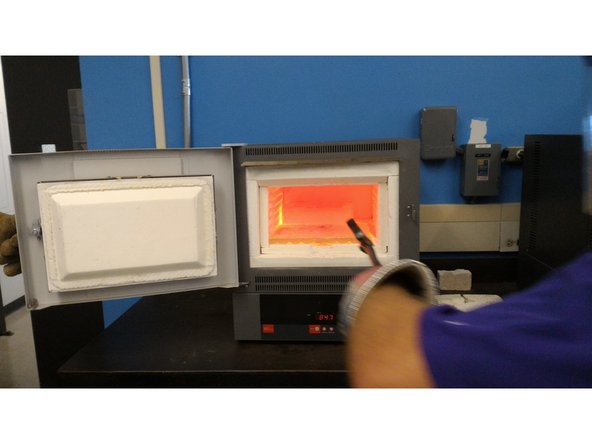

Operator B : While wearing the proper safety gear, use the tongs to put the workpiece in the center of the oven on the white alumina brick.
-
Close the door in-between each workpiece to keep the furnace at its set temperature.
-
-
-
This is a two person operation. In this guide, Operator A is the door handler, and Operator B is the workpiece handler.
-

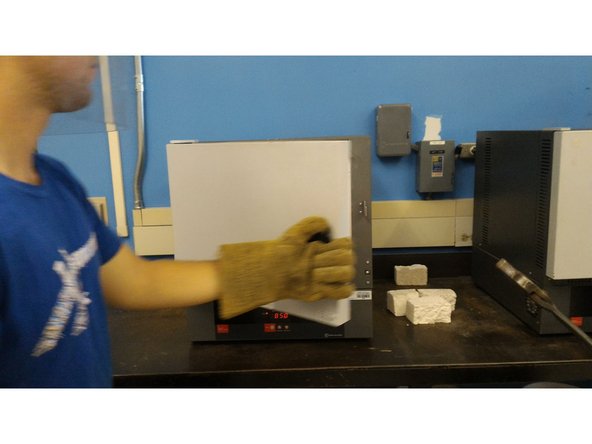

Operator A : Once Operator B has stepped away from the furnace, close the door slowly and turn the handle clockwise to lock it.
-
-
-
Remember that the displayed furnace temperature is less than the workpiece temperature when the workpiece is loaded. It will take time for the workpiece to equilibrate to the furnace temperature.
-
-
-
This is a two person operation. In this guide, Operator A is the door handler, and Operator B is the workpiece handler.
-
Operator A : While wearing the proper safety gear, turn the handle counter-clockwise to the unlocked position and slowly open the door.
-
Do not let go of the door handle.
-
-
-
This is a two person operation. In this guide, Operator A is the door handler, and Operator B is the workpiece handler.
-

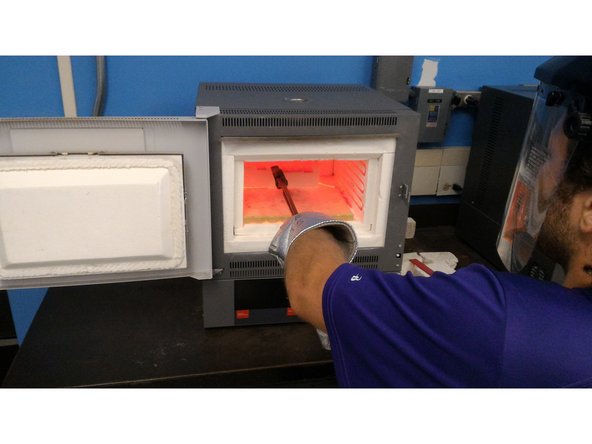

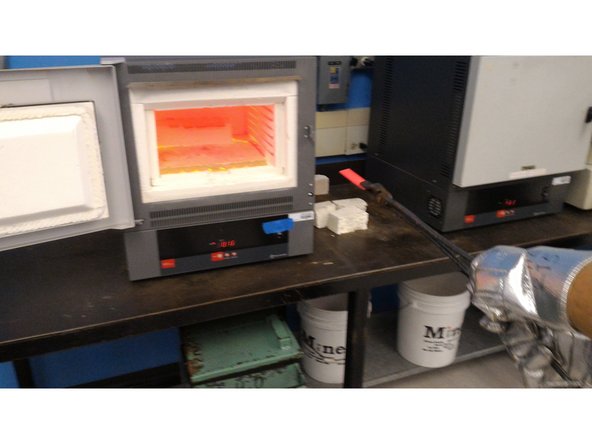

Operator B : While wearing the proper safety gear, use the tongs to grab the workpiece.
-

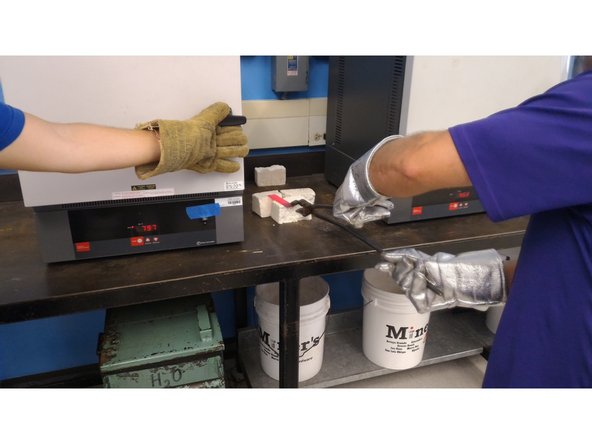

Remove the workpiece from the oven, placing it on the provided white alumina blocks.
-
Close the door in-between each workpiece to keep the furnace at its set temperature.
-
The workpiece will often not look "hot." Do not handle the workpiece until it has cooled completely.
-
-
-
This is a two person operation. In this guide, Operator A is the door handler, and Operator B is the workpiece handler.
-
Operator A : Once Operator B has stepped away from the furnace, close the door slowly and turn the handle clockwise to lock it.
-
